SCHÜCO PVC PROFILES

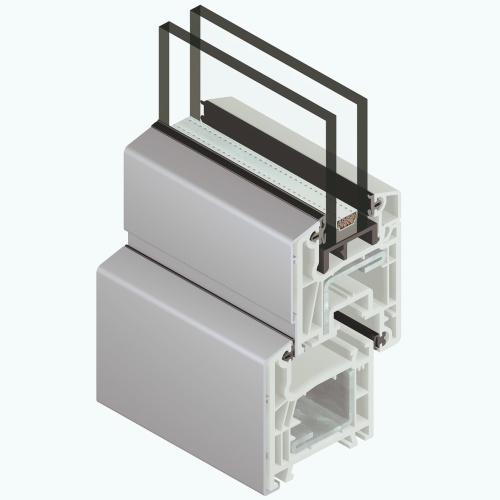

SCHÜCO CORONA AS 60 (3-chamber construction)

FIRST-CLASS SOLUTION AT A REASONABLE PRICE

  • System testing: ift – Rosenheim
  • Narrow face widths of 120 mm for the standard profile combination
  • Optimum thermal insulation and stability ratio
  • U value in accordance with DIN EN 12412-2
  • Uf = 1,6 – 1,7 W/m2K
  • High air-permeability value in accordance with DIN EN 12207, class 4
  • Noise insulation in accordance with DIN EN 20140, up to class SSK 4
  • Burglar resistance in accordance with DIN V ENV 1627 up to 1630, WK1 and WK2
  • Frame group in accordance with DIN 18055, class C

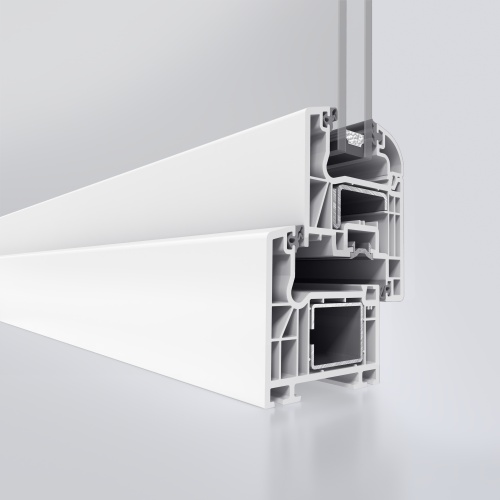

SCHÜCO CORONA CT 70 (5-chamber construction)

MODERN DESIGN AND SOPHISTICATED APPEARANCE

  • System testing: ift – Rosenheim
  • Narrow face widths of 120 mm for the standard profile combination
  • Optimum thermal insulation and stability ratio
  • Three different vent contours
  • Modern, silver-grey EPDM gaskets on white profiles
  • Uf = 1,3 – 1,5 W/m2K
  • High air-permeability value in accordance with DIN EN 12207, class 4
  • Noise insulation in accordance with DIN EN 20140, up to class SSK 5
  • Burglar resistance in accordance with DIN V ENV 1627 up to 1630, WK1 and WK2
  • Frame group in accordance with DIN 18055, class C

За изтегляне:
Price list CT 70 - balcony door with two-plane opening [PDF]
Price list CT 70 - window with two-plane opening [PDF]
Price list CT 70 - window non-openable [PDF]
Price list CT 70 - window with a flying detail [PDF]
Price list CT 70 - window with two-plane opening [PDF]

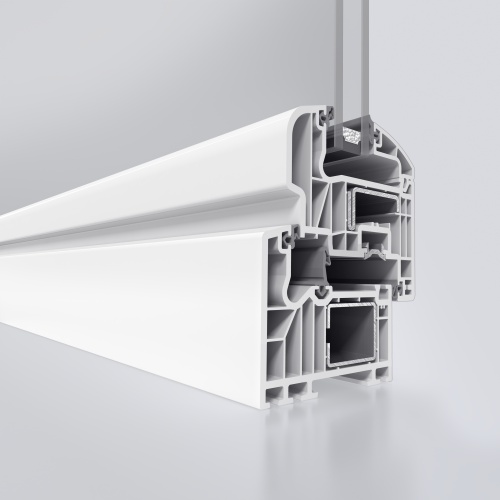

SCHÜCO CORONA SI 82+ (8-chamber technology)
SCHÜCO CORONA SI 82 (6- and 6+1-chamber technology)

MAXIMUM ENERGY SAVING

  • System testing: ift – Rosenheim
  • Narrow face widths of 120 mm for the standard profile combination
  • Optimum thermal insulation
  • Uw = 0,8 – 1,1 W/m2K
  • Innovative, patented aluminium profile rolling technology
  • Modern, silver-grey EPDM gaskets on white profiles
  • High static parameters and opportunities
  • High air-permeability value in accordance with DIN EN 12207, class 4
  • Noise insulation in accordance with DIN EN 20140, class SSK 5
  • Improved burglar resistance in accordance with DIN V ENV 1627 up to 1630, WK2
  • Frame group in accordance with DIN 18055, class C

За изтегляне:
Price list SI 82 - window non-openable [PDF]
Price list SI 82 - window with one-axis mechanism [PDF]
Price list SI 82 - balcony door double with low threshold [PDF]
Price list SI 82 - window with three openable wings [PDF]
Price list SI 82 - window with a flying detail DDK [PDF]
Price list SI 82 - window with two-side opening DK [PDF]
Price list SI 82 - balcony door two-plane opening [PDF]
Price list SI 82 - window opening type Volkswagen [PDF]

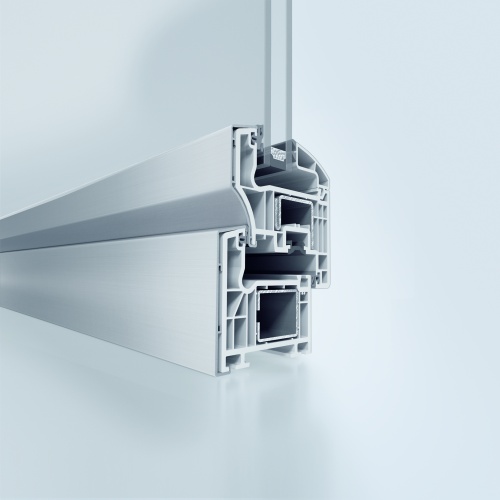

SCHÜCO CORONA TOP ALU

A COMBINATION OF PVC-U WINDOWS AND OUTER ALUMINUM COVER CAPS

  • A perfect match between the Corona PVC window system and an aluminum cover cap
  • An economic alternative
  • High-value modern aluminum optics
  • High level of resistance and long life of the aluminium cover cap, since it is almost totally resistant to environmental influences
  • The full range of RAL colours is available
  • Opportunity for anodizing, a modern deco- and metallic effect
  • Very suitable for mixed-type buildings: residential and commercial
  • Easy to maintain

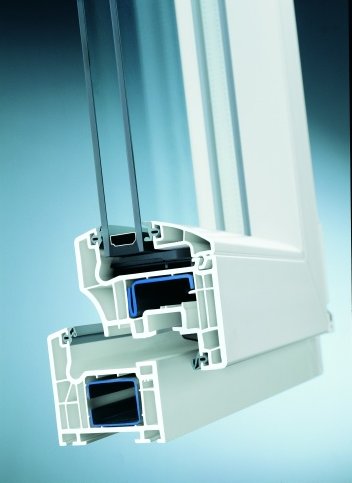

SCHÜCO VARIO TEC

GUARANTEES YOU EFFICIENCY, FLEXIBILITY AND SECURITY

  • intelligently combining the benefits of a steel fittings system with the principle of a locking-bar mechanism
  • every separate component of the system is independently tested and certified
  • Allows for large window vents and the use of special glazing

ПРОЗОРЦИ SCHÜCO

YOU CHOOSE THE COLOURS

  • Embossed or clear folios from the RAL system
  • The colours of Tuscany in your own home: Siena Noce and Siena Rosso
  • Timber finishes: a perfect imitation of precious wood
