SCHÜCO SUSPENDED FACADES AND WINTER GARDENS

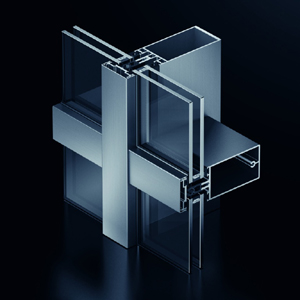

SCHÜCO FW50+

The standard systems for vertical façades

  • Narrow profile face widths of 50 mm
  • The systems could be combined with all Schüco Royal S doors and windows
  • The wide range of cover caps offers outstanding design options
  • Bullet resistance, burglar resistance and blast resistance options
  • High noise reduction and thermal insulation
  • Quick and easy installation due to a high degree of prefabrication

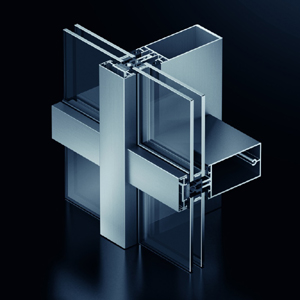

SCHÜCO FW50+.HI

Vertical façades with improved thermal insulation

  • Excellent thermal insulation
  • The wide range of cover caps offers outstanding design options
  • Great freedom in design thanks to the wide range of profile sizes
  • Can be combined with all Schüco Royal S doors and windows
  • High noise insulation
  • Quick and easy installation due to a high degree of prefabrication

SCHÜCO FW50+S

Design system with steel look

  • It could be combined with FW 50+
  • Additional cover caps with visible screws offer a hi-tech look
  • The elegant steel-look structure is achieved using slender visible profile widths
  • High noise and thermal insulation
  • Quick and easy installation due to a high degree of prefabrication

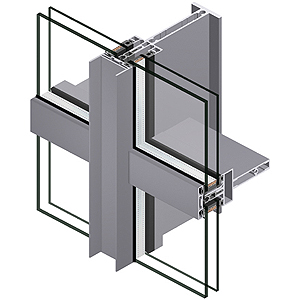

SCHÜCO FW50+S.HI

Design system with steel look and improved thermal insulation

  • It could be combined with FW 50+
  • Additional cover caps with visible screws offer a hi-tech look
  • The elegant steel-look structure is achieved by using slender visible profile widths
  • High noise reduction and thermal insulation
  • Quick and easy installation due to a high degree of prefabrication

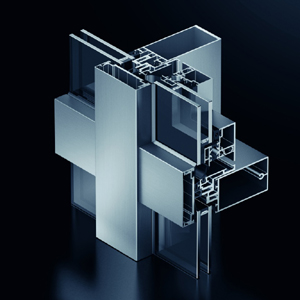

SCHÜCO FW50+DK

Design system with concealed opening units

  • Sophisticated design with narrow external and internal face widths
  • High noise reduction and thermal insulation
  • Quick and easy installation

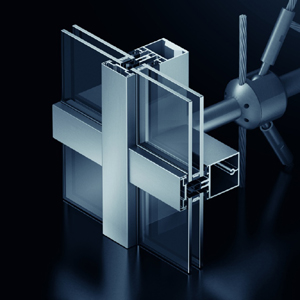

SCHÜCO FW50+ARC

Design system with stainless steel tension cables

  • Easy installation thanks to the flexible system of module nodes
  • Narrow stainless-steel cables and nodes for complex architectural spaces
  • Ideal for cases where a high carrying capacity is required
  • The tested system statics guarantee a high level of security

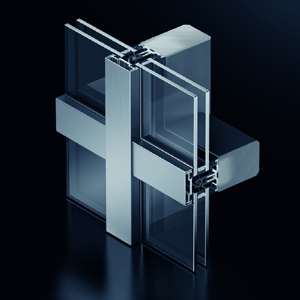

SCHÜCO FW50+ Holz-Aufsatz

Timber Add-on Constructions

  • Narrow profile face widths of 50 mm
  • The wide range of cover caps offers outstanding design options
  • Optimal congestion even at the height of 100 m
  • Large module formats for perfect lighting conditions
  • The system could be combined with window and door insert units
  • High noise reduction and thermal insulation

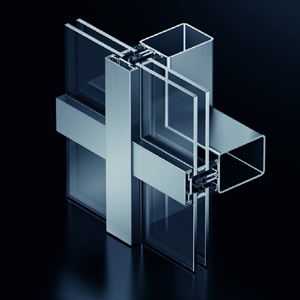

SCHÜCO FW50+ Stahl-Aufsatz

Steel add-on constructions

  • Narrow profile face widths of 50 mm
  • The wide range of cover caps offers outstanding design options
  • Optimal congestion even at the height of 100 m
  • The system could be combined with window and door insert units
  • Large module formats for perfect lighting conditions
  • High noise reduction and thermal insulation
  • Economically efficient manufacturing achieved by using a base construction

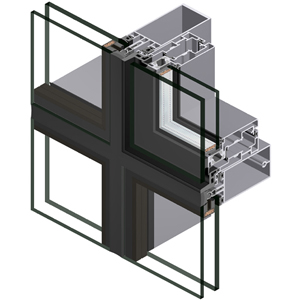

SCHÜCO FW50+SG

Structural façade

  • Profiles are visible only on the room side
  • Fine gaps
  • Can be combined with FW 50+
  • homogeneous appearance by all types of opening mechanisms
  • High noise reduction and thermal insulation

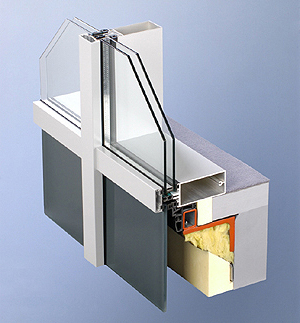

SCHÜCO FW50+CW

Ventilated / non-ventilated façades

  • Very economical solutions thanks to composite constructions
  • The cold sections of the facade serve as protection against unfavourable weather conditions
  • The profiles could be used in connecting the window elements of the building structure
  • High noise reduction levels; they can be also used as a fire-resistant façade
  • An appearance similar to standard facades
  • Narrow profile face widths of 50 or 60 mm
  • Great flexibility in positioning the ventilated and non-ventilated areas

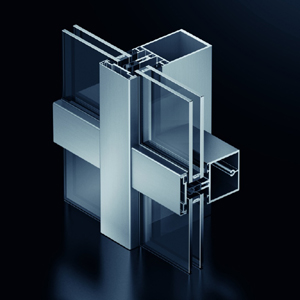

SCHÜCO FW60+

The standard systems for vertical facades

  • Narrow profile face widths of 60 mm
  • Can be combined with all Schüco Royal S products
  • The wide range of cover caps offers outstanding design options
  • Bullet resistance and burglar resistance options
  • High noise reduction and thermal insulation
  • Quick and easy installation

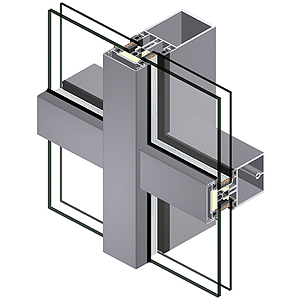

SCHÜCO FW60+.HI

Vertical facades with improved thermal insulation

  • Narrow profile face widths 60 mm
  • Excellent thermal insulation
  • A wide range of cover caps offer outstanding design options
  • The system could be combined with all Schüco Royal S doors and windows
  • High noise insulation level
  • Quick and easy installation

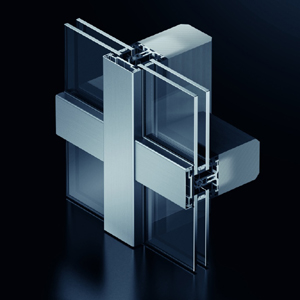

SCHÜCO FW60+ Holz-Aufsatz

Timber Add-on Constructions

  • Narrow profile face widths of 60 mm
  • The wide range of cover caps offers outstanding design options
  • Optimal congestion at the height of 100 m
  • Large module formats for perfect lighting conditions
  • The system could be combined with window and door insert units
  • Excellent noise reduction and thermal insulation levels
  • Economical manufacturing of the subconstruction

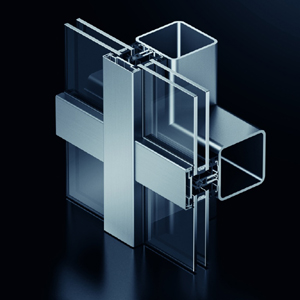

SCHÜCO FW60+ Stahl-Aufsatz

Steel add-on constructions

  • Narrow profile face widths of 60 mm
  • The wide range of cover caps offers outstanding design options
  • Large module formats for perfect lighting conditions
  • High noise reduction and thermal insulation levels
  • Optimal congestion at the height of 100 m
  • Economical manufacturing ot the load-bearing construction

SCHÜCO FW60+CW

Ventilated / non-ventilated façades

  • Very economical solutions thanks to composite constructions
  • The cold sections serve as protection against unfavourable weather conditions
  • The profiles could be used in connecting the window elements of the building structure
  • High noise reduction levels; they can be also used as a fire-resistant façade
  • An appearance identical to standard facades
  • Narrow profile face widths of 60 mm
  • Great flexibility in positioning the ventilated and non-ventilated areas

SCHÜCO SFC 85

Structural Glazing Façades

  • Structural glazing façade with thermal bridge
  • Opening units fully integrated into the load-bearing structure, also in conjunction with a concealed motor drive
  • 85 mm inside face width
  • A new generation of fittings

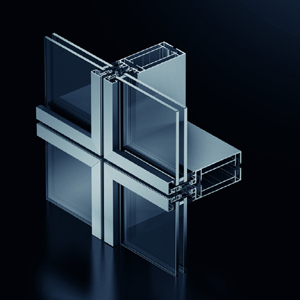

SCHÜCO SkyLine S65

  • All-round narrow face widths up to 65 mm
  • E-connect interface to connect electrical components from all trades
  • Comprehensive range of accessories
  • Considerable design freedom and maximum flexibility in adapting to project-specific requirements.

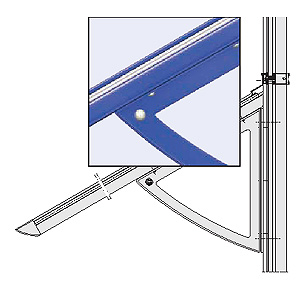

SCHÜCO Top Sky 1

The construction for glazed canopies

  • High grade aluminium system-supported profiles: corrosion-resistant and low maintenance
  • Ideal solution for glazed canopies with safety glass or photovoltaic modules
  • High degree of self-cleaning due to the 30о angle construction
  • Individual assembly on existing building surfaces or façade constructions (face width from 50 mm)
  • Glass thickness of 8 - 16 mm
  • Profile depths for load-bearing profiles: 45 mm

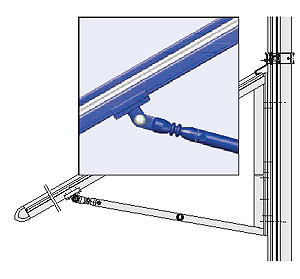

SCHÜCO Top Sky 2

Aluminium canopy constructions with a variable roof incline

  • High grade aluminium system-supported profiles: corrosion-resistant and low maintenance
  • Versatile design options with safety glass or photovoltaic modules
  • High degree of self-cleaning due to a roof support system with a variable roof incline
  • Individual assembly on existing building surfaces or façade construction
  • Glass thickness of 8 - 16 mm
  • Profile depths for load-bearing profiles: 28 mm
