SCHÜCO ALUMINIUM PROFILES

The new-generation windows SCHÜCO AWS (Aluminium window system) combine the design and architecture aspect with functional advantages. The improved U-value (heat transfer coefficient) Uf and the small face widths offer architects and designers innumerable construction opportunities.

The minimum visible widths of the profiles allow for a filigree optic of the façade through the larger relative surface of glass. The ergonomic handles are put together in a universal series, for which SCHÜCO received the 2006 iF award during the International Forum Design in Hannover.

The concealed fitting can be set in motion manually or automatically with the help of a button or the building’s central control system. Optically and technically identical links and pieces between windows, doors and facades are created.

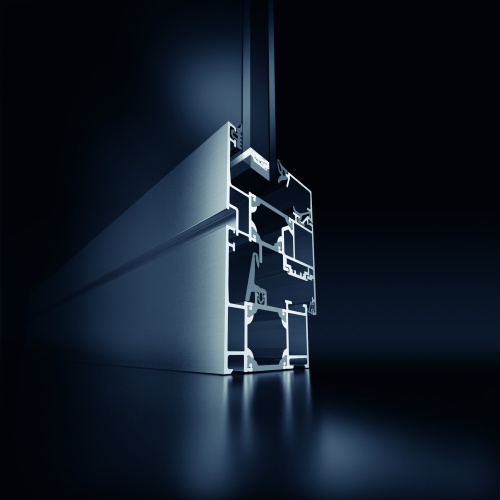

SCHÜCO AWS 60

OPTIMAL PRICE/QUALITY RATIO

  • Improved U-value from Uf = 1,9 W/m2K to 2,8 W/m2K
  • Construction width 60 mm
  • Enlarged insulation zone with foam-filled insulating bars
  • Expanded gasket zone: very good noise insulation
  • Minimum visible profile widths of 51 mm
  • Maximum light
  • All possible opening types
  • Possibility for frame and sash in the same plane

Downloads:
Price list AWS60-BT matrix [PDF]
Price list AWS60 matrix [PDF]
Price list AWS60-F [PDF]
Price list AWS60-VW matrix [PDF]
Price list ADS 60 1FLG [PDF]
Price list ADS 60 2FLG [PDF]

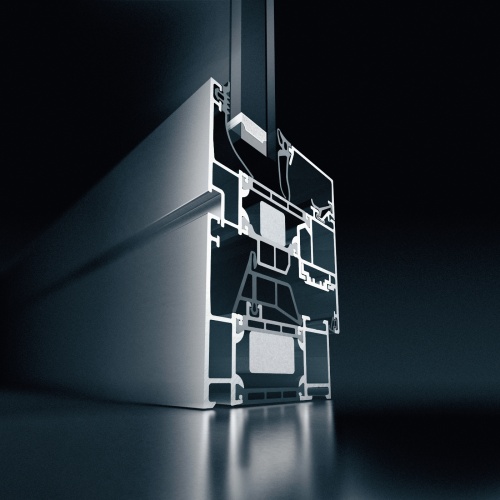

SCHÜCO AWS 70.HI

HIGHLY THERMOINSULATING, STABLE, UNIVERSALLY APPLICABLE

  • Improved thermal insulation for basic depths of 70 mm: Uf values of 1.7 W/m²K
  • Enlarged insulation zone with foam-filled insulating bars
  • Burglar resistance class WK3
  • Expanded gasket zone: very good noise insulation
  • Minimum visible profile widths of 51 mm
  • Maximum light
  • All possible opening types
  • Possibility for frame and sash in the same plane

Downloads:
Price list AWS70HI-BT matrix [PDF]
Price list AWS70HI-DK [PDF]
Price list AWS70HI-F matrix [PDF]
Price list AWS70HI-VW matrix [PDF]

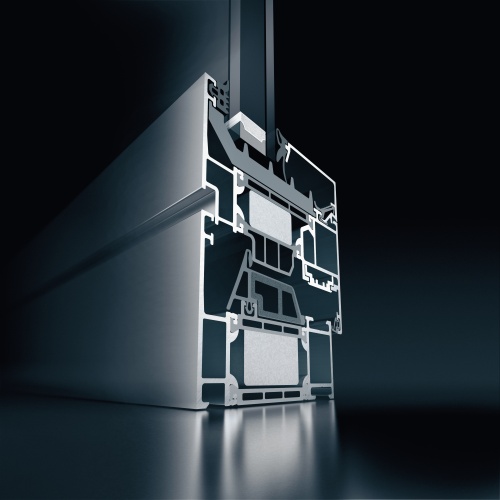

SCHÜCO AWS 75. SI 7 (Super Insulation)

OPTIMAL ENERGY EFFICIENCY

  • Maximum energy saving effect, Uf values from 0.9 to 1.6 W/m²K
  • Basic depth of 75 mm: more safety and stability of the construction
  • Enlarged insulation zone with foam-filled insulating bars
  • Novel design of thermal insulation in glazing rebate
  • Burglar resistance class WK3
  • Expanded gasket zone: very good noise insulation
  • Minimum visible profile widths of 67 mm
  • Maximum light
  • All possible opening types
  • Possibility for frame and sash in the same plane

SCHÜCO Novonic 50

За изтегляне:
Price list Novonic 50 - heat-insulated window [PDF]
Price list Novonic 50 - combination [PDF]

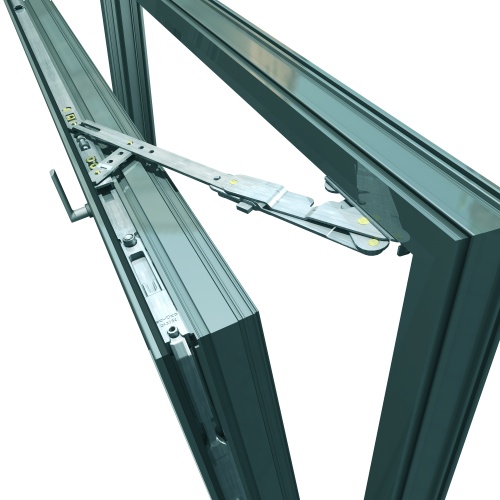

SCHÜCO Avan Tec

THE BEST INVESTMENT FOR YOUR HOME

  • Made of stainless steel – excellent corrosion protection
  • Opening angle of 90°
  • Vent weight up to 130 kg
  • SAFETY: Burglar resistance class WK3
  • COMFORT: easy cleaning and maintenance
  • DESIGN: concealed fitting for clear lines and elegant optics

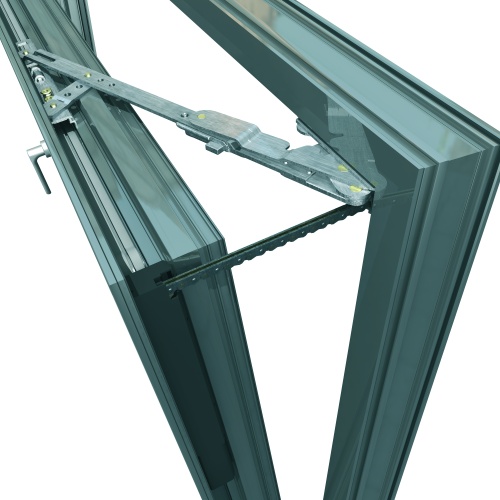

SCHÜCO Tip Tronic

FIRST-CLASS COMFORT

  • NEW-GENERATION FITTING: the first fully mechatronic fitting for real-time intuitive operation of doors and windows
  • ENERGY EFFICIENCY: excellent potential for energy saving through automation of ventilation, heating and sun protection
  • SAFETY: Burglar resistance class WK3 and minimum four protection mechanisms
  • AUTOMATION: automated operation of all opening types
  • DESIGN: elegant optics achieved by using concealed fitting and minimum visible face widths

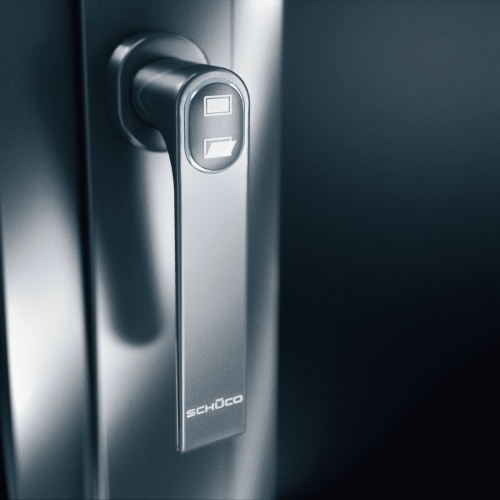

SCHÜCO handles series

THE iF AWARD FOR DESIGN

  • Impressive design
  • Uniform design range of handles for windows, doors, sliding windows and sliding doors
